Chapati Maker

Chapati Maker
Chapati Maker
Product Code : 03
Brand Name : AMRIT ENGINEERING WORKS
Product Description

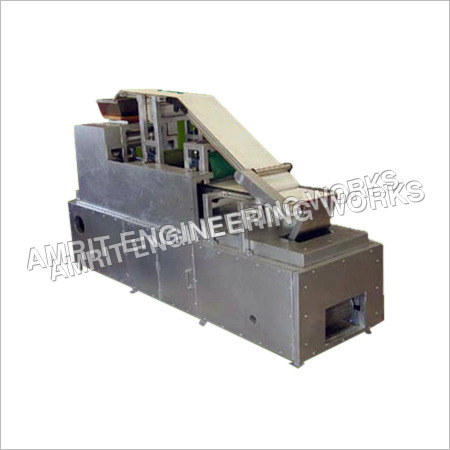

Chapati Maker

The
Chapati Maker dough prepared by mixing flour and water by the Separate mixer machine, then dough is fed to the machine hopper manually and then the dough sheet is form by the four rollers set and pass to die cutting unit, here in this unit the exact round shape is cut from the sheet, the rest part the further pass to gauge roller set to adjust the thickness of chapati and further of dough is recycled by Recycling Conveyor and then further pass to oven for baking and puffing Process.

Technical Specifications

Model

A.E. - 500

A.E. - 1000

A.E. - 2000

A.E. - 5000

A.E. - 10000

Machine Area (in ft)

6'(I) x 3' (B) x 5' (H)

7' (I) x3' (B) x 5' (H)

9' (I) x 3'(B) x 5' (H)

15' (I) x 4'(B) x 5' (H)

18' (I) x 4.5' (B) x 7' (H)

Production

500 Chapaties/ HR

1000 Chapaties/ HR

2000 Chapaties/ HR

5000 Chapaties/ HR

10000 Chapaties/ HR

Size of Chapati (Dia.)

4 to 8 inches (Only one size is available on Cutting Die)

Weight of Chapati in gm

25 to 50 gm Adjustable

Chapati Thickness

1.5 - 3 mm Adjustable

L.P.G Consumption

3-4 kg/hour

4-5 kg/hour

5-6 kg/hour

8-9 kg/hour

14-16 kg/hour

Power Requirement

0.75 kw/hr

1 kw/hr

1.5 kw/hr

3 kw/hr

4 kw/hr

Material Used

S.S. ALU, M.S

S.S, ALU, M.S

S.S, ALU, M.S

S.S, M.S

S.S, M.S

Model

A.E. -1500

A.E. - 20000

Machine Area (in ft)

25' (I) x 5' (B) x 7' (H)

30' (I) x 5' (B) x 7' (H)

Production

15000 Chapaties/hr

20000 chapaties/ hr

Size of Chapati (Dia)

4 to 7 inches (Only one size is Available on Cutting Dia)

Weight of Chapati in gm

25 to 40 gm Adjustable

Chapati Thickness

1.5-3 mm Adjustable

L.P.G. Consumption

20-22 kg/hour

24-26 kg/hour

Power Required

5 kw/hr

6 kw/hr

Material Used

S.S, ALU, M.S.

S.S, ALU, M.S
